…aaand it’s gone. The WX GUI was recently deleted in GNU Radio’s next branch.

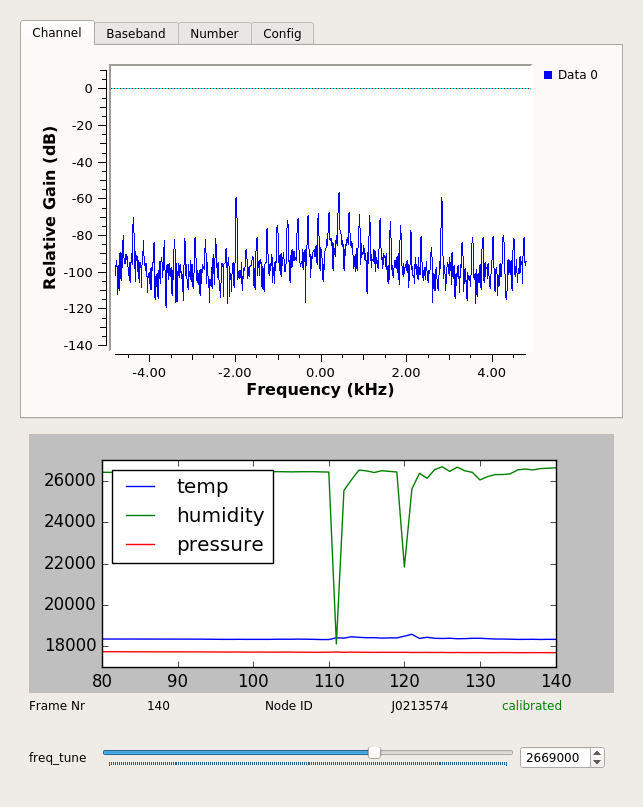

I just finished porting all my modules to QT. For the weather balloon receiver and the RDS transceiver, it was a bit tricky since I use custom panels.

They now look like this:

Please let me know if there are problems.

I just wanted to give a brief update of my key fob project. Maybe you remember that, following a recent paper, it seems as if the firmware of VW ECUs contains a master key that can be used to clone arbitrary keys by overhearing a single transmission. I already blogged about that earlier.

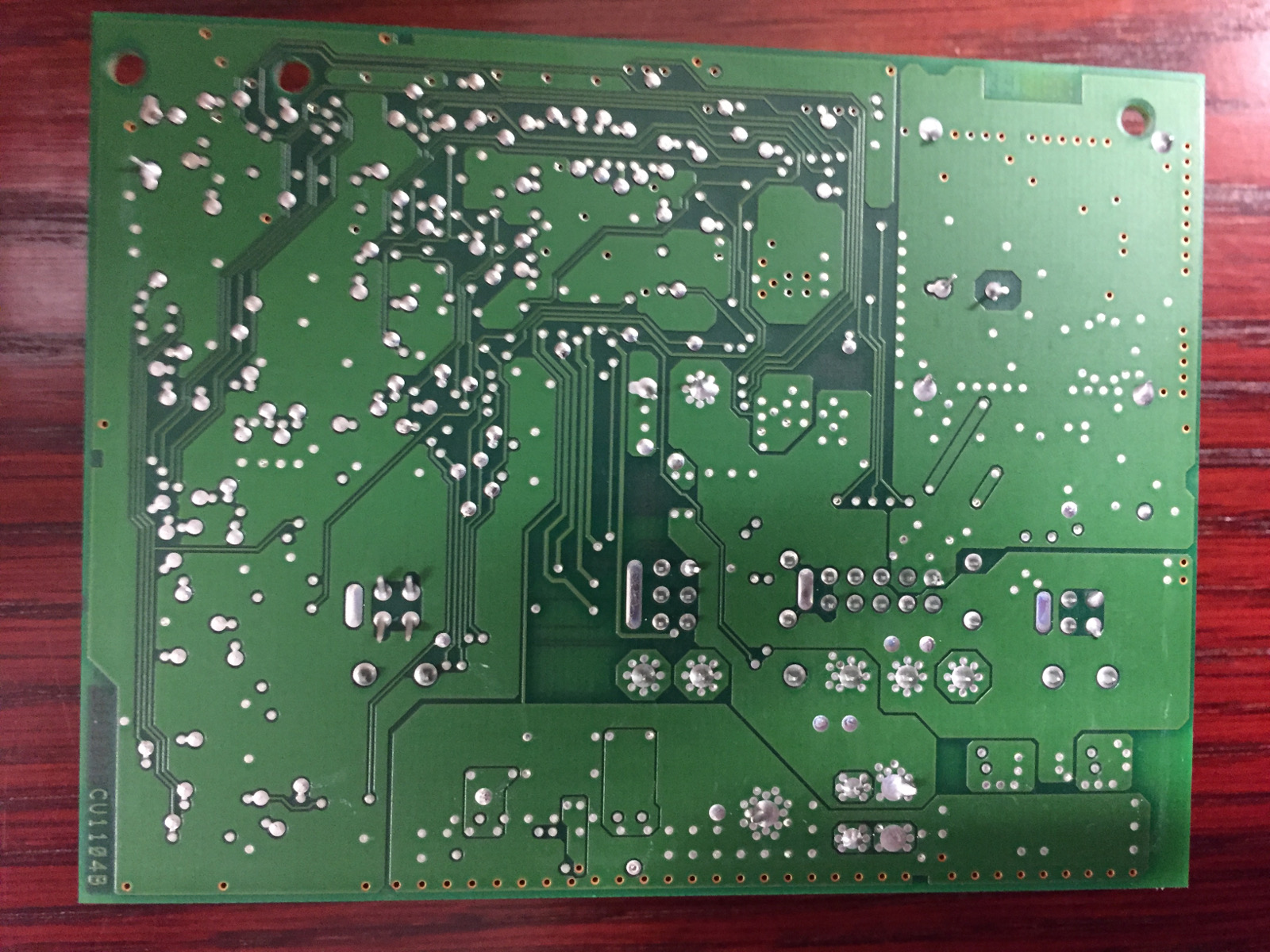

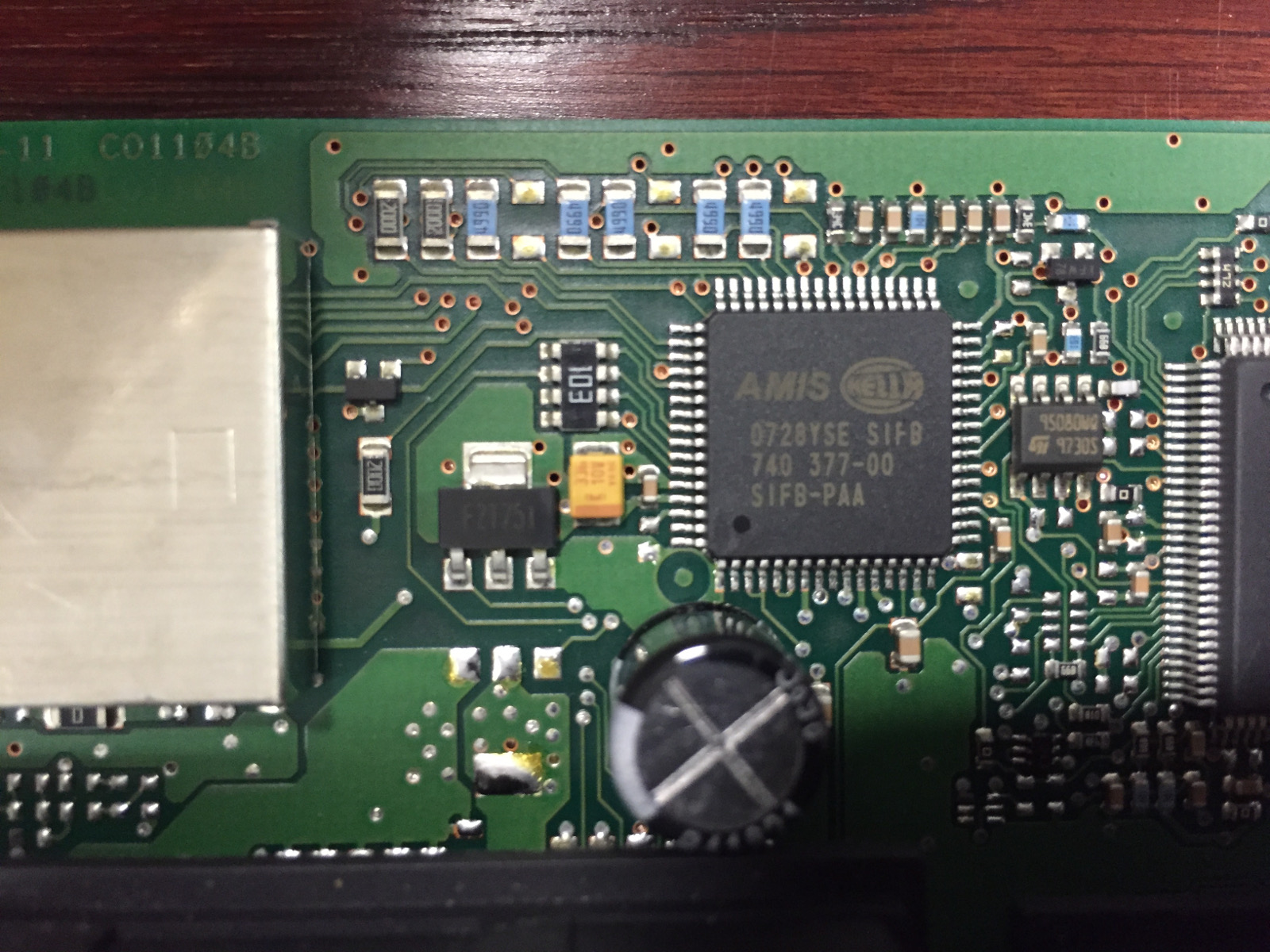

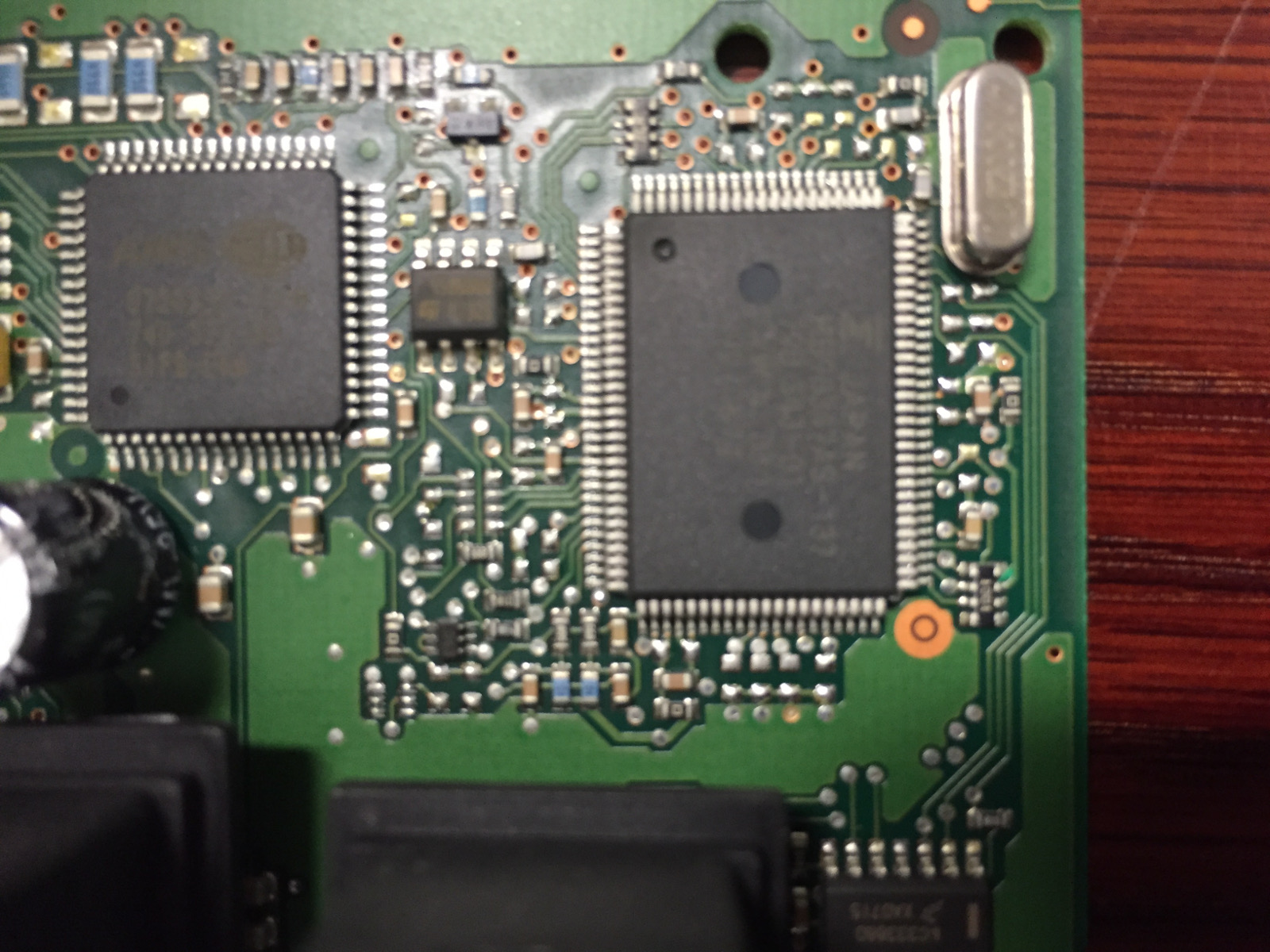

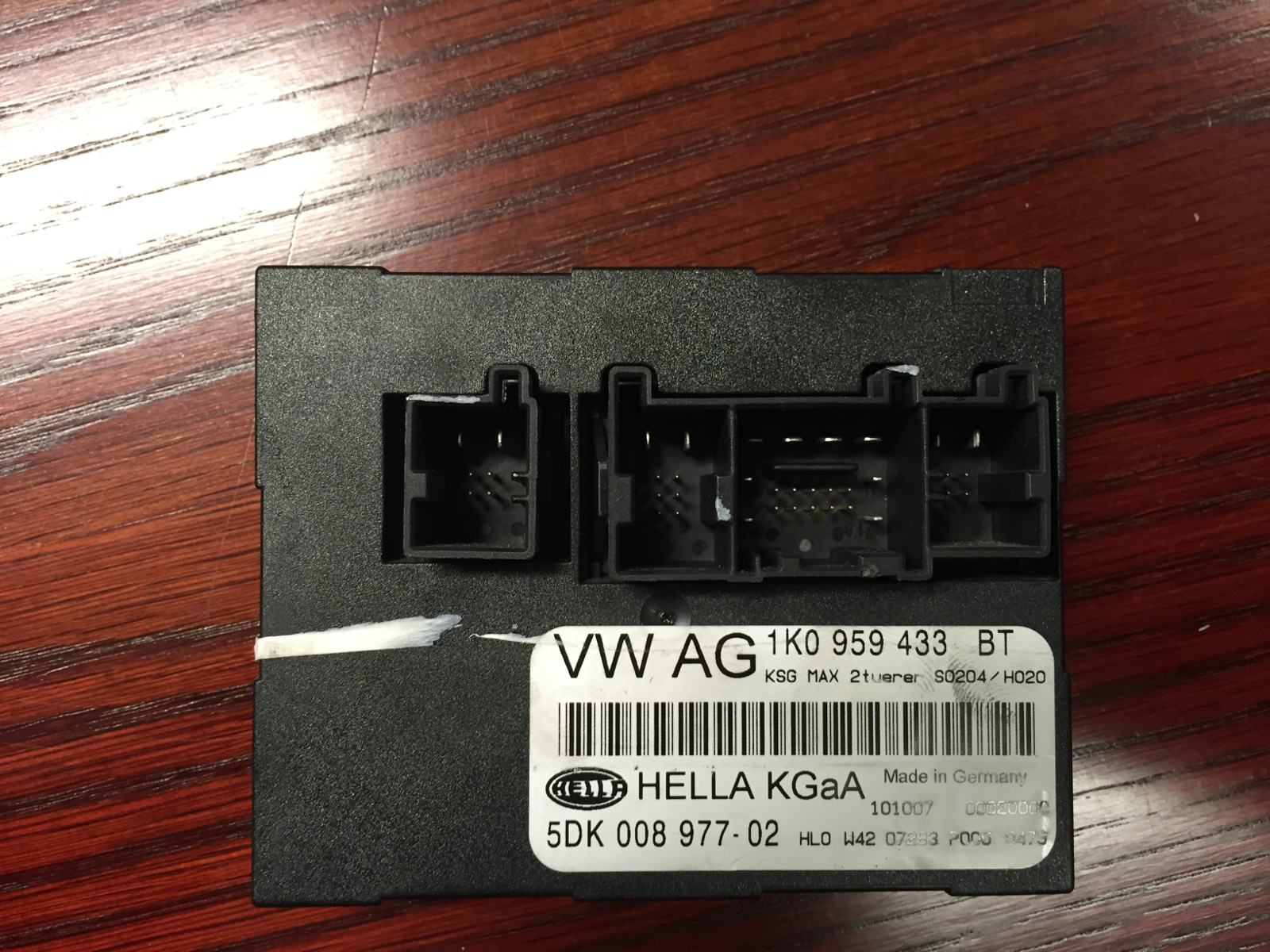

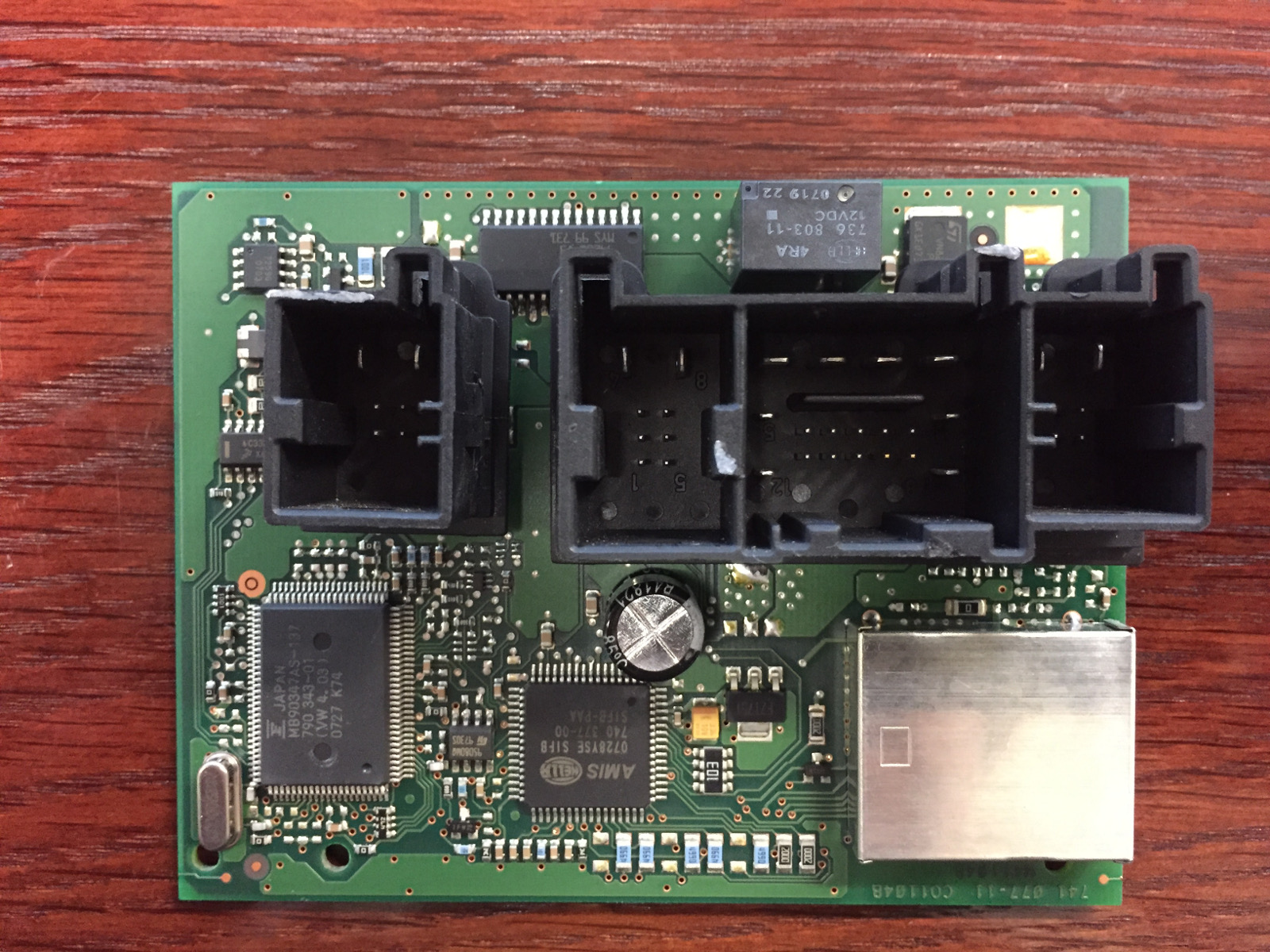

In the meantime, my Comfort Control Unit arrived. I’m pretty confident that this is the ECU in question since it’s also made by Hella, the company that sells the keys. Here are some photos from the board.

Today, I was happy to merge pull-request from Jonathan Brucker that added RFtap support to some of my OOT modules. RFtap bridges the gap between SDR transceivers and network monitors like Wireshark.

In a nutshell, it reads metadata (like encoding, SNR, or frequency offset) from the receiver and makes it available to the monitoring software. What’s really great is that RFtap can be extended with custom dissectors. In this blog post, Jonathan describes how he connect my gr-rds transceiver to Wireshark.

Note that while there is something very similar available for WiFi (the Radiotap header), RFtap is more flexible and allows adding more fine-grained information.

I’ve recently seen a great video where a student gave a brief overview of his paper. I think it’s very nice to have this executive summary as an ad for the paper. So, of course, I wanted to give it a try.

Strangely, I found it way, way harder than expected. Looks like giving a monologue to myself is something I am not used to.

So here is what I came up with. Good thing is, it leaves much room for improvements :-)

• Bastian Bloessl, Mario Gerla and Falko Dressler, “IEEE 802.11p in Fast Fading Scenarios: From Traces to Comparative Studies of Receive Algorithms,” Proceedings of 22nd ACM International Conference on Mobile Computing and Networking (MobiCom 2016), 1st ACM International Workshop on Smart, Autonomous, and Connected Vehicular Systems and Services (CarSys 2016), New York, NY, October 2016. [DOI, BibTeX, PDF and Details…]

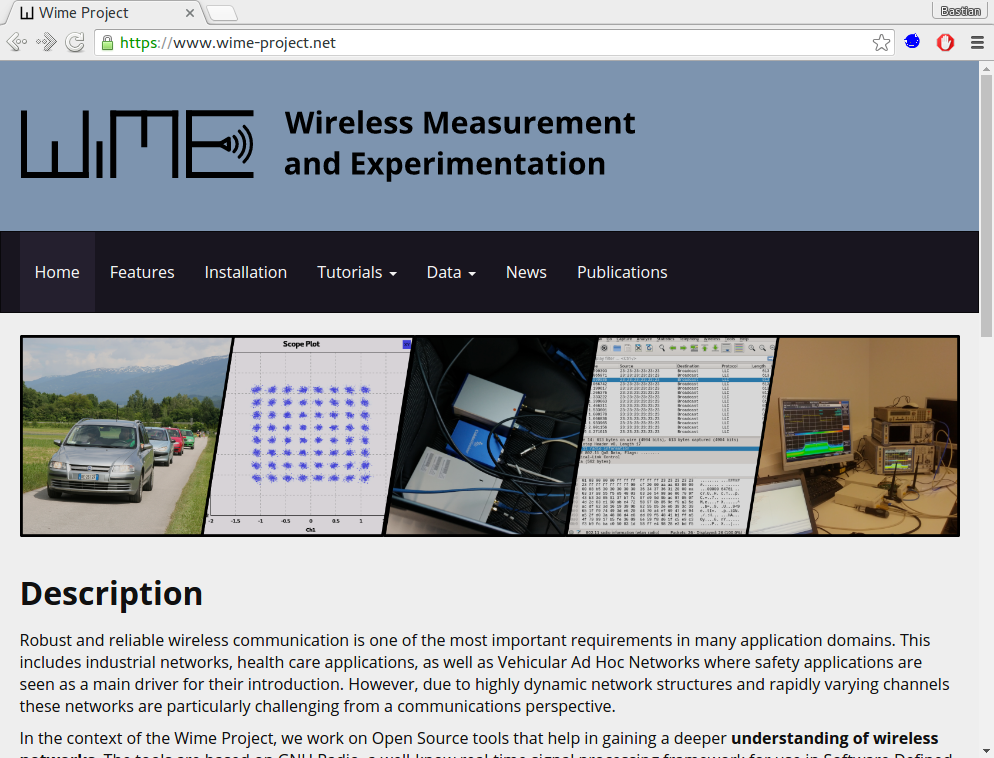

I just uploaded a new website for the Wime Project, an umbrella project for most of my work on GNU Radio OOT modules.

I also created Facebook and Twitter accounts that will keep you updated.

Today, I was very happy to read On prototyping IEEE802.11p Channel Estimators in Real-World Environments Using GNURadio by Razvan-Andrei Stoica, Stefano Severi, and Giuseppe Thadeu Freitas de Abreu, presented at 2016 IEEE Intelligent Vehicles Symposium (IV).

The paper extends my GNU Radio WiFi transceiver with another state-of-the-art channel estimation algorithm, designed specifically for Vehicular Ad Hoc Networks. I’m particularly happy, since I always hoped to motivate exactly this kind of papers by releasing the software under an Open Source license.

Apart from the algorithm itself, the authors also implemented well-established channel models for vehicular networks.

I already dropped them an email and hope I can motivate them to contribute their code. It would be really great to have it in the module.

During the last days, I was happy to see that normal news covered findings from wireless security researchers, who reverse engineered many wireless car key fobs from the VW group, unveiling major security issues. This Wired article, for example, gives a good overview.

The critical point is that VW uses very few master keys to encrypt the data sent by the key. Once these master keys (which are deployed in every key fob and every car) are disclosed, it’s trivial to clone keys by overhearing the signal from a single key press.

The results were published in the paper Lock It and Still Lose It – On the (In)Security of Automotive Remote Keyless Entry Systems by Flavio D. Garcia, David Oswald, Timo Kasper, and Pierre Pavlidès, which was presented at 25th USENIX Security Symposium. It covers many wireless car key fobs, including the ones that I had a look at.

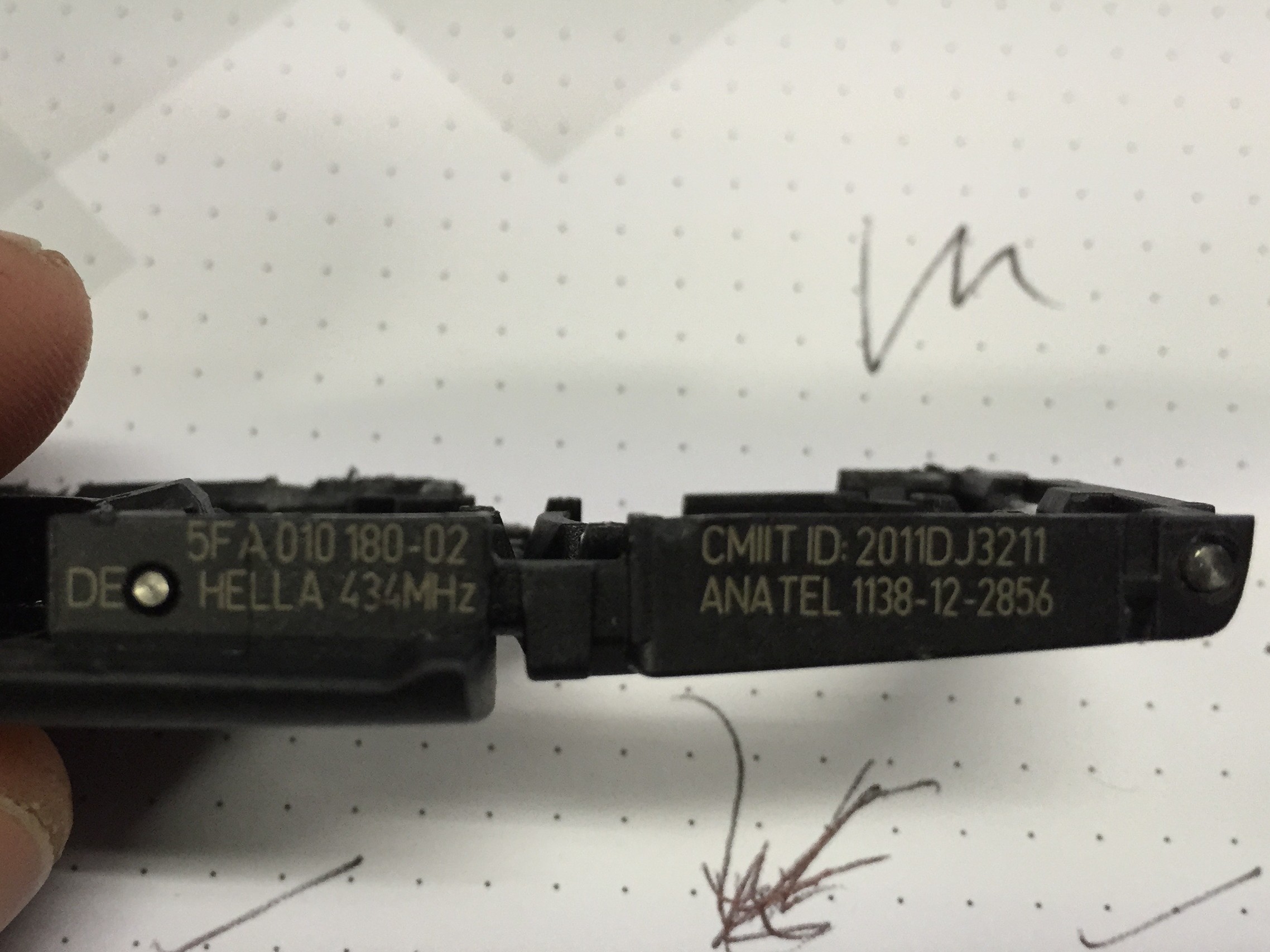

My GNU Radio transceiver supports the keys that are referred to as VW-3 and VW-4 in the paper. Both versions use the same physical layer and frame structure, but differ in the algorithm used to encrypt the data. As far as I understand, the authors didn’t omit any information on that part of the system. So that seems to be settled.

The only thing that’s still unclear is how to acquire the master key. In the paper, the authors state that they extracted it from one of the car’s Electronic Control Units (ECUs). However, to me, it seems that this part requires another trick. When talking about key extraction, the authors mention:

Note that as part of our negotiations with VW Group, and to protect VW Group customers, we agreed to not fully disclose the part numbers of the analyzed ECUs and the employed μCs at this point. We furthermore agreed to omit certain details of the reverse-engineering process, as well as the values of cryptographic keys.

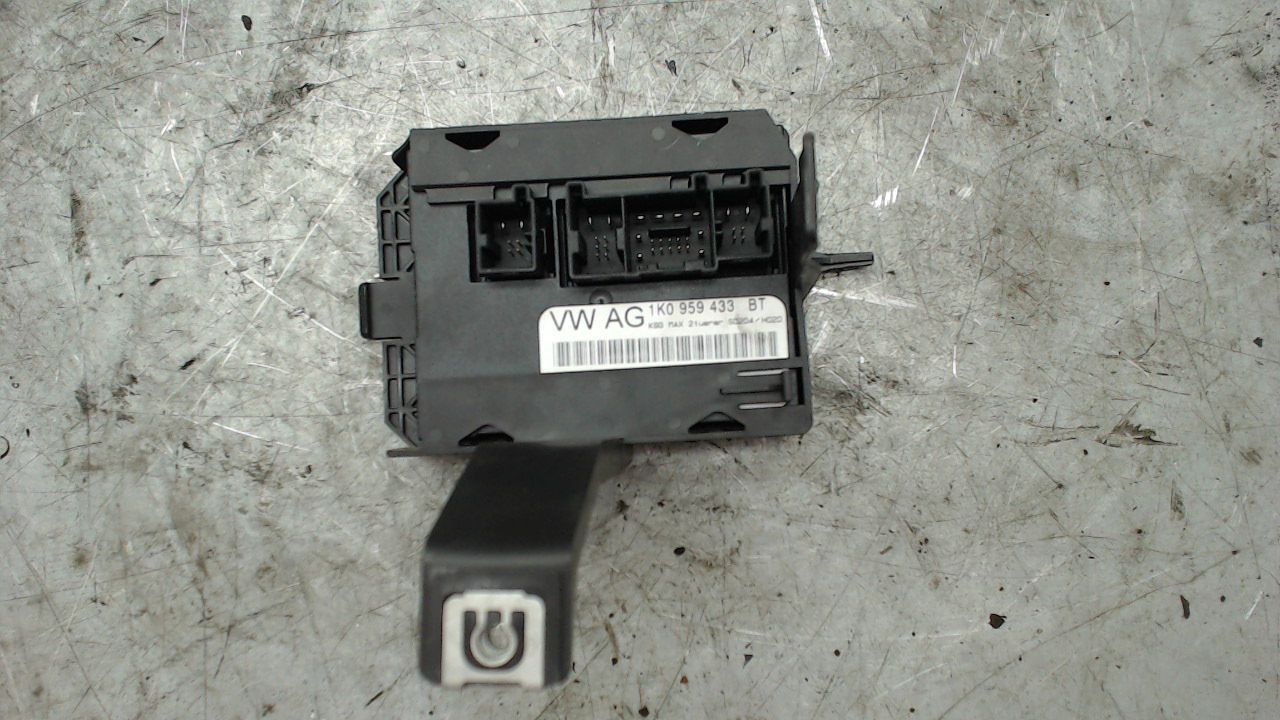

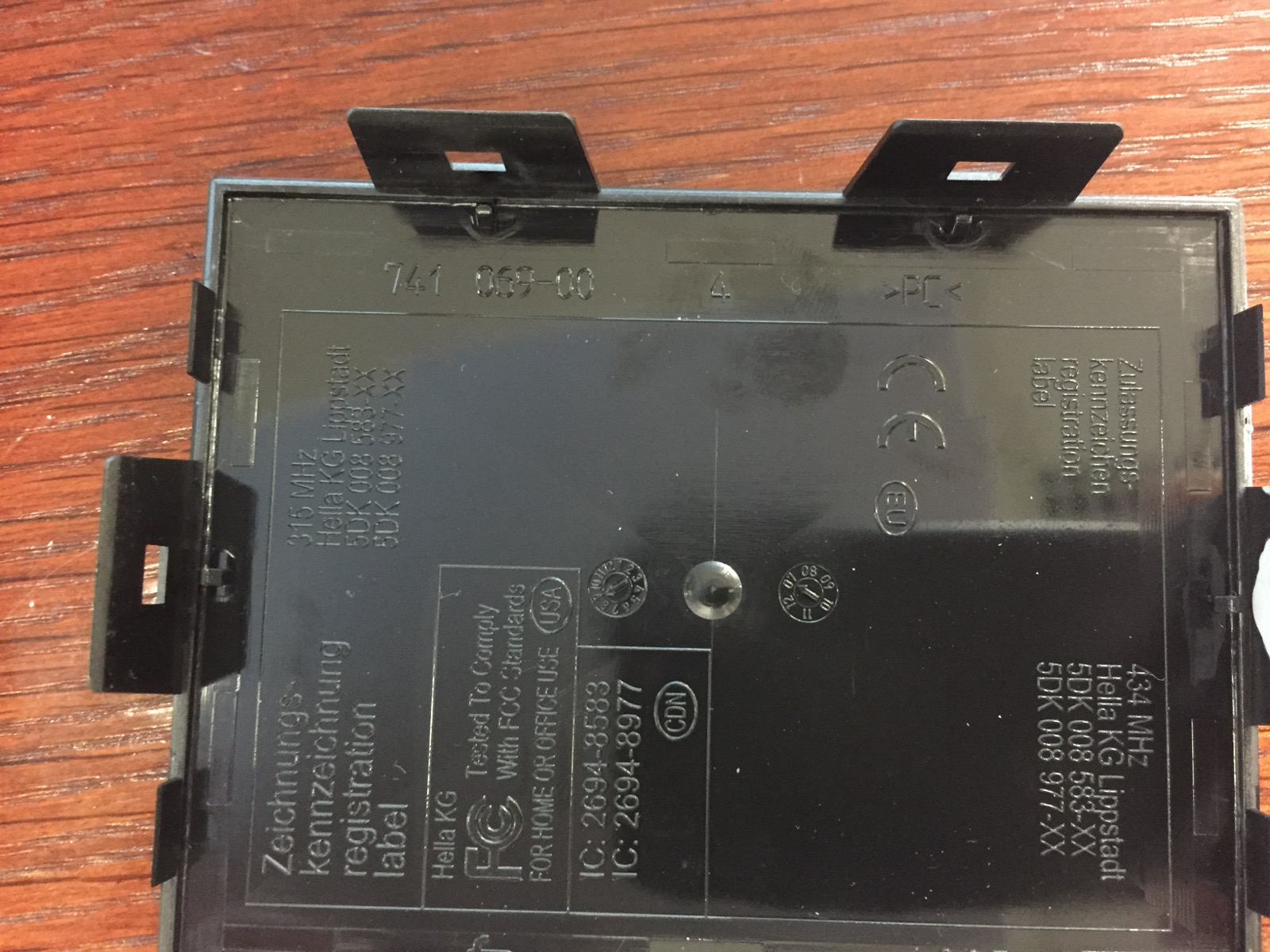

After some discussions with a friend, I think the ECU in question is the Comfort Control Module (Komfortsteuergerät), which sells for about 30 EUR on Ebay. I read in several forums that it contains the receiver for the wireless key fob. Furthermore, it is manufactured by Hella, who also sells the keys. So that makes, at least, some sense.

I just bought one of those ECUs for my Skoda Octavia. Since it looks like the same module is used with models from 2006 to 2012, I think that it might still use the VW-3 encryption scheme.

Looking forward to having a look in the box.

Procrastinating writing my thesis, I seem to come up with all kinds on nonsense. This one, however, is actually important. It’s about the feeling I get when reading other people’s thesis. They all seem to have this deep, intellectual quotes at the start of every chapter.

Every time I see somebody citing Plato, I wonder, how the heck did that guy manage to write his thesis, while catching up with the philosophical body of literature, dating back before Christ.

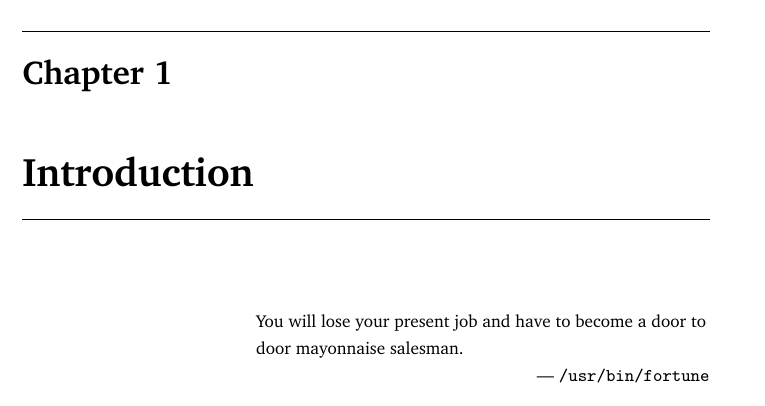

I’m not that kind of guy, but I also didn’t want to miss the unique opportunity to impress people by showing how intellectual I am. So I decided for using good old fortune to insert something for me. Currently, my chapter headers look something like:

\chapter{Introduction}
\label{sec:introduction}
\immediate\write18{./quote.sh \the\value{chapter}}
\epigraph{\input{/tmp/fortune-\the\value{chapter}}}{--- \textup{\texttt{/usr/bin/fortune}}}

This runs quote.sh for every chapter and inserts the quotes from LaTex files that it generates. (Yes, you can run shell scripts from LaTeX (at least, if you enabled shell escape, which you probably have). This is exactly why it’s a bad idea to compile other peoples LaTeX files without checking the sources. If there would be something like rm -rf ~, then bye bye home directory.)

The qhote.sh script checks if there is already a fortune for that chapter. If there is none or if it’s older than an hour, it will create a new one.

#!/bin/bash

# new fortunes every hour
if [ ! -f /tmp/fortune-$1.tex ] || test "`find /tmp/fortune-$1.tex -mmin +60`"
then
    fortune | sed -e 's/-- .*//g' | sed '/^\s*$/d' > /tmp/fortune-$1.tex
fi

With this I have awesome (albeit sometimes a bit demotivational) chapter quotes in my thesis :-)

Let’s see what the next hour brings.

I’m very happy that my paper IEEE 802.11p in Fast Fading Scenarios: From Traces to Comparative Studies of Receive Algorithms was accepted for ACM CarSys’16.

I’m particularly happy, because it covers stuff that I’ve done during my stay at UCLA and because it uses many of the new features of my GNU Radio WiFi transceiver (like the new channel estimation algorithms, for example).

The paper is mainly about trace-driven performance assessment of the IEEE 802.11p PHY using Software Defined Radio. Its abstract reads like:

We present an approach for using signal traces from Field Operational Tests (FOTs) for later evaluations and comparative studies of receive algorithms for the IEEE 802.11p PHY. In particular, we use Software Defined Radios (SDRs) to record the raw signal, i.e., complex baseband samples, from IEEE802.11p transmissions during an experiment on the road. These samples are later used with our GNU Radio- based IEEE 802.11p implementation for studying different receive algorithms – allowing for optimal comparability and repeatability. We exemplarily evaluate four typical algorithms ranging from simple ones currently used in commodity WLAN chips to more sophisticated ones proposed specifically for vehicular applications. We can show that fast fading scenarios lead to a significant packet error rate when using the standard algorithms. For better comparability, we make both our GNU Radio implementation as well as the collected traces publicly available.

Having this paper accepted also means, I again managed to get myself to ACM MobiCom, which is one of my favorite conferences. Last but not least, I will finally get to see New York. Really looking forward!

We all know it – Academia is a…

OK, I’ve expected to see something else here.

Still, it’s really interesting to see how good and bad experiences following so tightly. I guess, I should start with the bad one to end on a high note and to be in a better mood after writing this post.

<Rant>

Already in March, Google Scholar pointed me to a technical report that was citing my GNU Radio WiFi transceiver. The context was not really gently:

Very recently several attempts were made to develop an IEEE802.11abg compatible stack that reaches 54Mbps [6], [5], [7]. However, this open source GNU Radio based implementation is limited to QPSK and not able to correctly receive neither 16-QAM nor 64-QAM modulated signals and the reported evaluation only considers packets below 100 Bytes [6].

I dropped them an email, mentioning that I’m the author of said attempts, asking for what was going wrong. As it turned out, they used an N210, configured 20MHz, and oh wonder, there was an uncompensated CIC filter. (Yes, the filter that UHD informs you about each and every time you start the flow graph.) Long story short, they acknowledged that their claim was wrong and updated their technical report.

Five months fast forward – Google Scholar again. The authors published a paper. Looking at the conference website, it becomes clear that about the same time, they submitted a paper to ACM WiSec 2016, which claims:

While there is an existing implementation of Wi-Fi receiver [2] on GNU Radio, it is not functional for rates beyond 18 Mbps.

So this means that even though they knew about their mistake and that this claim did not hold, they still put it in the paper to make their work more relevant. I mean it’s one thing if somebody misunderstands a paper, but on purpose? Seriously?

To backup their claim and to confuse the reviewer, the authors cite a demo paper, which they knew from the emails was out of date. But still it did not help. While the channel estimation algorithms were not as good as now, this demo already showed that it does support all modulation and coding schemes. Sorry, but this is very – let’s say – questionable practice.

If you already think that that’s a shame, then keep on reading.

While they were at it, they seemingly also came to know our Scrambler Attack, a novel attack on the privacy of WiFi networks, which was, meanwhile, picked up and continued by quite some other researchers.

In the same WiSec paper, the authors continue:

Recent work [30] discovered that for some chipset manufacturers, scrambling seeds are generated in a free-wheeling mode with some specific shift distances which are used to distinguish the device models.

This is exactly what we wrote in our paper. Now guess what’s behind [30] – exactly, a paper that builds on ours, obviously chosen to avoid citing our paper that actually discovered it.

Really, I don’t know what to say about that, since this is just wrong on so many levels. For me, it’s really disappointing to see how people behave in this scientific community.

</Rant>

Fortunately, there is also a short story from the bright side of life. Again, Google Scholar pointed me to a paper that will be presented at ACM SIGCOMM 2016.

To put it in context, SIGCOMM is the conference on all kinds of data communications. If I had an idea, ten-times better than everything before, I still would not even consider submitting to SIGCOMM.

I’m, therefore, extremely happy to see that researchers from the University of Washington use our WiFi transceiver and exploit our findings regarding the scrambler seeds to do awesome work in the context of energy-efficient, backscattered communications.

So, not all hope is lost… let’s see what the future brings :-)
